Product Details

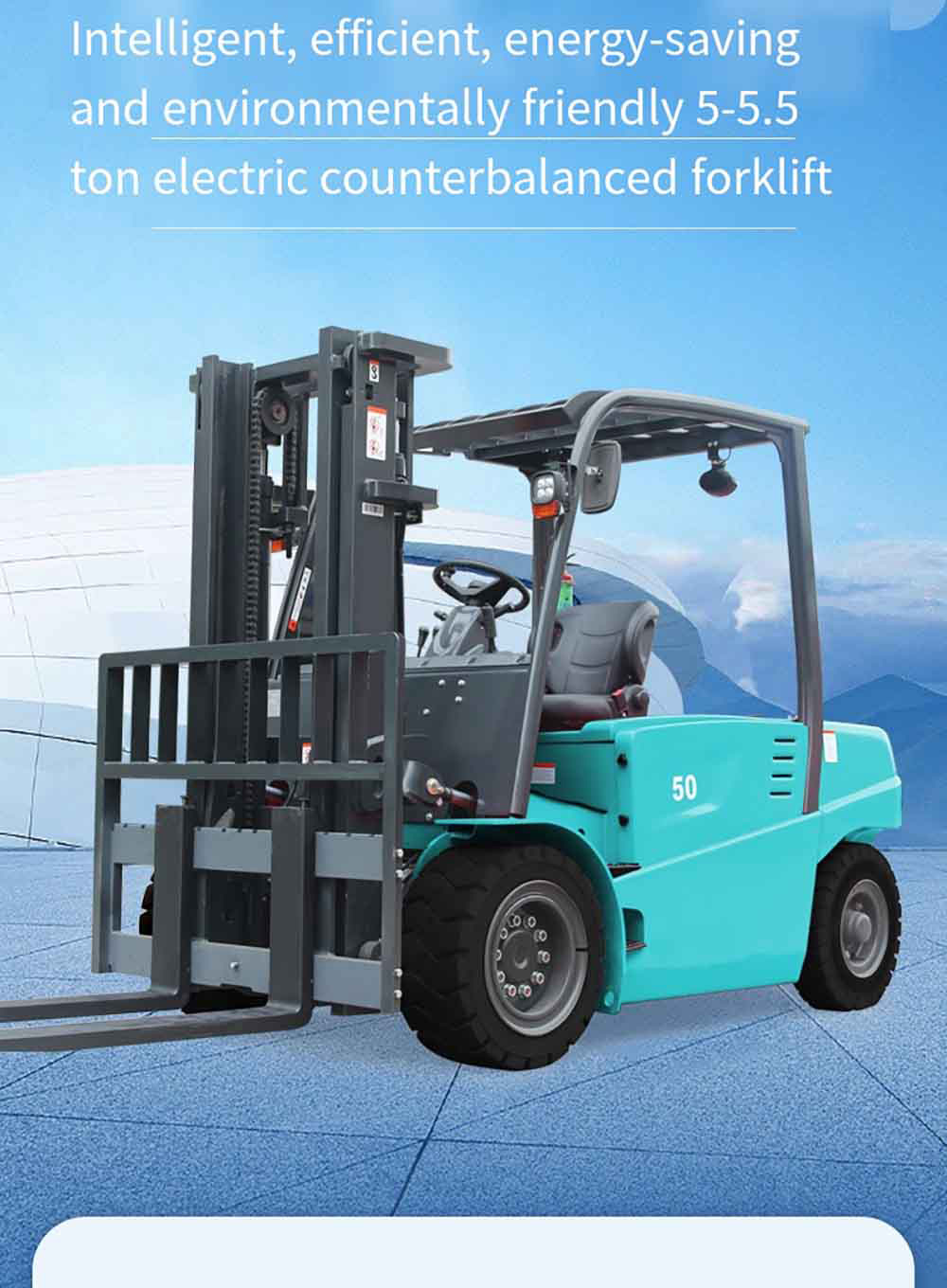

4-WHEEL ELECTRIC FORKLIFT4.5-6.0TON

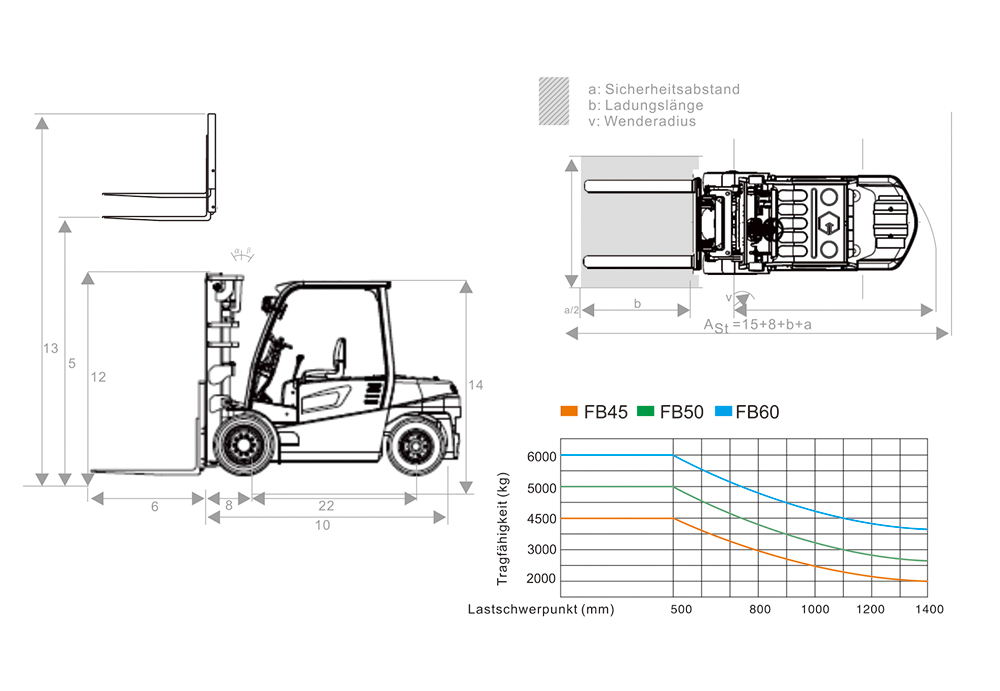

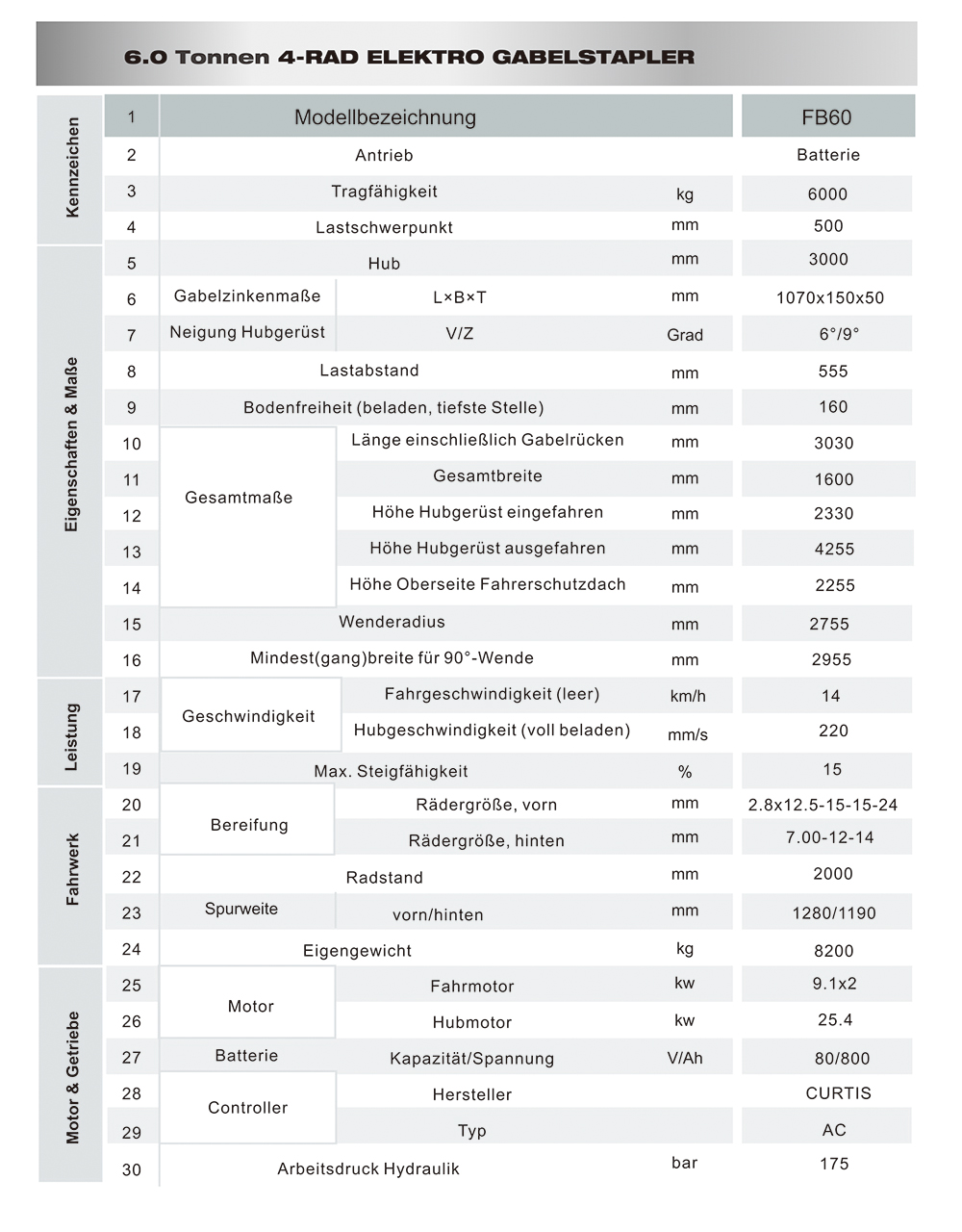

General	1	Model			FB45	FB50	FB60
	2	Power Type			Electric	Electric	Electric
	3	Rated Capacity		kg	4500	5000	6000
	4	Load Centre		mm	500	500	500
Characteristic&Dimension	5	Lift Height		mm	3000	3000	3000
	6	Fork Size	LxWxT	mm	1070x150x50	1070x150x50	1070x150x50
	7	Mast Tilt Angle	F/R	Deg	6°/9°	6°/9°	6°/9°
	8	Front Overhang (Wheel center to fork face)		mm	555	555	555
	9	Tread	F/R	mm	1280/1190	1280/1190	1280/1190
	10	Ground Clearance (Bottom of mast）		mm	160	160	160
	11	Fork Spread	Min./Max.	mm	300/1380	300/1380	300/1380
	12	Overall Dimension	Length to face of fork(Without fork)	mm	3030	3030	3030
	13		Overall Width	mm	1600	1600	1600
	14		Mast lowered Height	mm	2330	2330	2330
	15		Mast Extended Height(With backrest)	mm	4255	4255	4255
	16		Overhead Guard Height	mm	2255	2255	2255
Performance	17	Turning Radius（outside）		mm	2755	2755	2755
	18	Min.inserting aisle		mm	2955	2955	2955
	19	Speed	Travel (Empty load)	km/h	14	14	14
Chassis	20		Lifting(Full load)	mm/s	250	220	220
	21	Max.Gradeability		%	15	15	15
	22	Tire	Front		2.8x12.5-15-24PR	2.8x12.5-15-24PR	2.8x12.5-15-24PR
	23		Rear		7.00-12-14PR	7.00-12-14PR	7.00-12-14PR
Power&Transmission	24	Wheelbase		mm	2000	2000	2000
	25	Service weight		kg	7500	7800	8200
	26	Motor	Drive Motor	kw	9.1x2	9.1x2	9.1x2
	27		Lift Motor	kw	25.4	25.4	25.4
	28	Battery	Voltage/Capacity	V/Ah	80/600	80/700	80/800
	29	Controller	Manufacturer		CURTIS	CURTIS	CURTIS
	30		Type		AC	AC	AC
	31	Operating Pressure for Attachment		Mpa	17.5	17.5	17.5
