Product Details

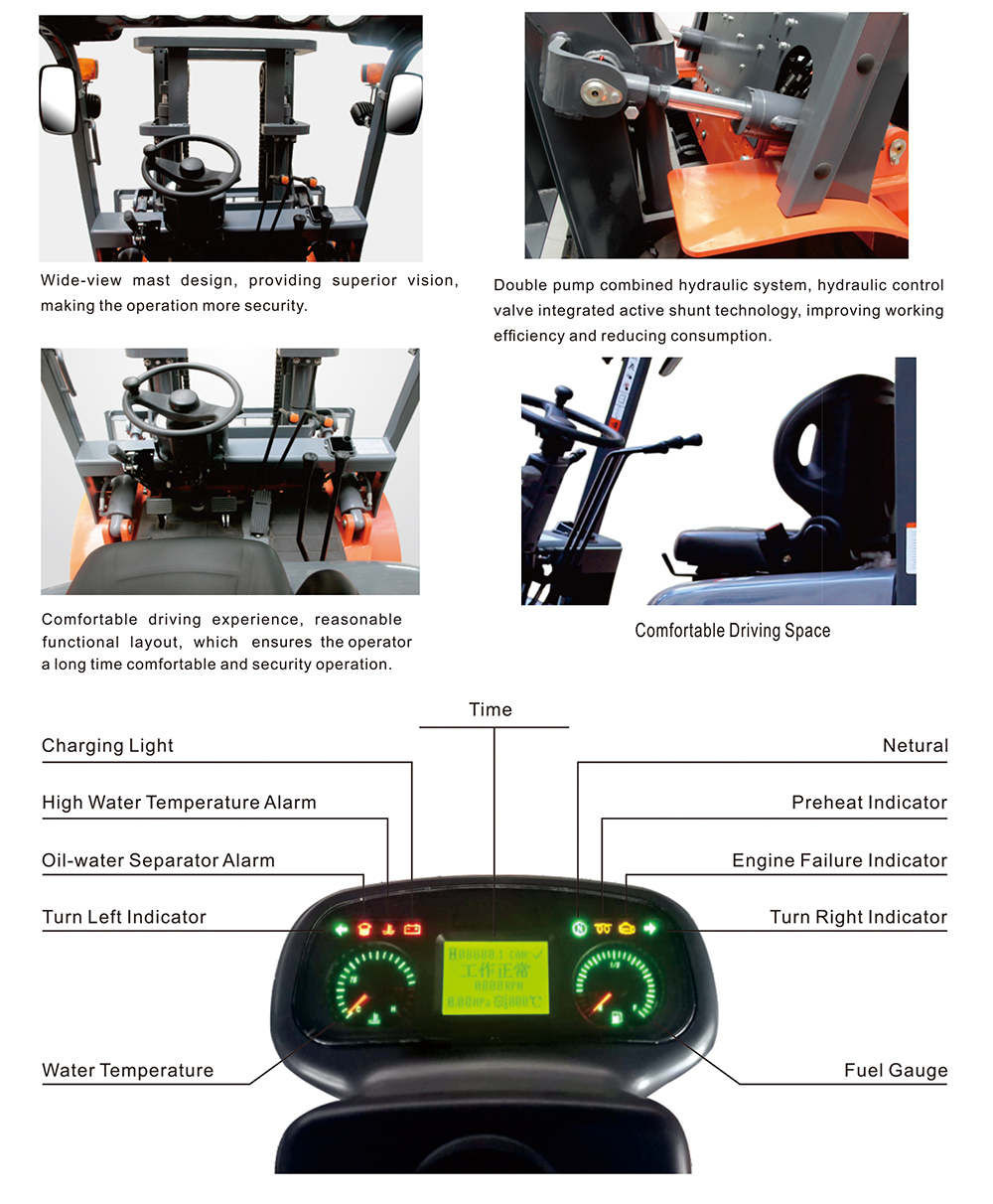

T-SERIES DIESEL FORKLIFT 3.O-4.OTON
General	1	Model			FD30	FD35	FD40
	2	Power Type			Diesel	Diesel	Diesel
	3	Rated Capacity		kg	3000	3500	4000
	4	Load Centre		mm	500	500	500
Characteristic&Dimension	5	Lift Height		mm	3000	3000	3000
	6	Fork Size	LxWxT	mm	1070x125x45	1070x125x50	1070x125x50
	7	Mast Tilt Angle	F/R	Deg	6°/12°	6°/12°	6°/12°
	8	Front Overhang (Wheel center to fork face)		mm	475	480	500
	9	Ground Clearance (Bottom of mast)		mm	135	110	135
	10	Overall Dimension	Length to face of fork(Without fork)	mm	2770	2865	2890
	11		Overall Width	mm	1225	1225	1410
	12		Mast Lowered Height	mm	2115	2175	2330
	13		Mast Extended Height(With backrest)	mm	4160	4160	4225
	14		Overhead Guard Height	mm	2090	2090	2110
	15	Turning Radius (outside)		mm	2520	2600	2700
	16	Min. inserting aisle		mm	2550	2630	2700
Performance	17	Speed	Travel (Empty load)	km/h	19	19	19
	18		Lifting(Full load)	mm/s	440	350	320
	19	Max.Gradeability		％	20	20	20
Chassis	20	Tire	Front		28x9-15-12PR	28x9-15-12PR	250-15-16PR
	21		Rear		6.50-10-10 PR	6.50-10-10 PR	6.50-10-10 PR
	22	Wheelbase		mm	1800	1800	1900
	23	Service weight		kg	4150	4500	5100
Power&Transmission	24	Battery	Voltage/Capacity	VIAh	12/80	12/80	12/80
	25	Model			QC490GA	QC490GA	A498BPG-520
	26	Manufacture			QUANCHAI	QUANCHAI	XINCHAI
	27	Rated output/r.p.m.		kw	39/2650	39/2650	45/2500
	28	Rated torque/r.p.m.		N.m	157/1800-2000	157/1800-2000	193/1800
	29	No.of Cylinder			4	4	4
	30	BorexStroke		mm	90×105	90×105	98x105
	31	Displacement		cc	2670	2670	3170
	32	Fuel Tank Capacity		L	60	60	70
	33	Transmission	Type		Hydraulic	Hydraulic	Hydraulic
	34		Stage | FWD/RVS		1/1	1/1	1/1
	35	Operating Pressure for Attachment		Mpa	17.5	17.5	19

T-SERIES 3.O-4.O TON DIESEL FORKLIFT MAST
Type	Model	Lift Height(mm)	Load Capacity (kg)
			3.0t	3.5t	4.0t
Wide view 2-stage mast	M200	2000	3000	3500	4000
	M250	2500	3000	3500	4000
	M300	3000	3000	3500	4000
	M330	3300	3000	3500	4000
	M350	3500	3000	3500	4000
	M370	3700	3000	3500	4000
	M400	4000	2950*3000	3200*3500	4000
	M450	4500	2750*3000	3000*3050	3600*3800
	M500	5000	2400*2550	2500*2850	3100*3500
	M550	5500	2250*2400	2300*2500	2850*3150
	M600	6000	1500*2200	1800*2300	2300*2900
Full free 2-stage mast	Z200	2000	3000	3500	4000
	Z250	2500	3000	3500	4000
	Z300	3000	3000	3500	4000
	Z330	3300	3000	3500	4000
	Z350	3500	3000	3500	4000
	Z370	3700	3000	3500	4000
	Z400	4000	2900*3000	3300*3500	3900*4000
Full free 3-stage mast	S370	3700	2900	3300	3900
	S400	4000	2900	3300	3900
	S435	4350	2800*2900	3000*3300	3750*3900
	S450	4500	2700*2800	2900*3100	3600*3800
	S480	4800	2500*2800	2700*3000	3250*3650
	S500	5000	2300*2550	2500*2800	3000*3500
	S550	5500	2200*2400	2350*2500	2750*3150
	S600	6000	1500*2100	1650*2200	2200*2900

T-SERIES 3.O-4.O TON DIESEL FORKLIFT MAST
Type	Model
		3.0t			3.5t			4.0t
		Mast Lowered	Mast Extended		Mast Lowered	Mast Extended		Mast Lowered	Mast Extended	Mast Lowered
			With Backrest	Without Backrest		With Backrest	Without Backrest		With Backrest	Without Backrest
Wide view 2-stage mast	M200	1615	3180	2720	1615	3180	2720	1695	3180	2840
	M250	1865	3680	3220	1865	3680	3220	1945	3680	3340
	M300	2115	4180	3720	2115	4180	3720	2195	4180	3840
	M330	2265	4480	4020	2265	4480	4020	2345	4480	4140
	M350	2365	4880	4220	2365	4880	4220	2445	4680	4340
	M370	2465	5180	4420	2465	5180	4420	2545	4880	4540
	M400	2665	5680	4720	2665	5680	4720	2745	5180	4840
	M450	2915	6180	5220	2915	6180	5220	2995	5680	5340
	M500	3165	6680	5720	3165	6680	5720	3245	6180	5840
	M550	3465	7180	6220	3465	7180	6220	3545	6680	6340
	M600	3715	3180	6720	3715	3180	6720	3795	7180	6840
Full free 2-stage mast	Z200	1615	3680	2720	1615	3680	2720	1695	3180	2780
	Z250	1865	4180	3220	1865	4180	3220	1945	3680	3280
	Z300	2115	4480	3720	2115	4480	3720	2195	4180	3780
	Z330	2265	4680	4020	2265	4680	4020	2345	4480	4080
	Z350	2365	4880	4220	2365	4880	4220	2445	4680	4280
	Z370	2465	5180	4420	2465	5180	4420	2545	4880	4480
	Z400	2665	4875	4720	2665	4875	4720	2745	5180	4780
Full free 3-stage mast	S370	1870	5175	4420	1870	5175	4420	1930	4875	4480
	S400	1970	5525	4720	1970	5525	4720	2030	5175	4780
	S435	2085	5675	5070	2085	5675	5070	2145	5525	5130
	S450	2135	5975	5240	2135	5975	5240	2195	5675	5280
	S480	2235	6175	5520	2235	6175	5520	2295	5975	5580
	S500	2305	6175	5720	2305	6175	5720	2365	6175	5780
	S550	2520	6675	6220	2520	6675	6220	2580	6675	6280
	S600	2685	7175	6720	2685	7175	6720	2745	7175	6780

T-SERIES 3.O-4.O TON DIESEL FORKLIFT MAST
Type	Model	Overall Height (mm)										Tilt Angle
		3.0t			3.5t			3.5t		4.0t
		Mast Lowered	Mast Extended		Mast Lowered	Mast Extended		Mast Extended		Mast Extended		F/R(deg)
			With Backrest	Without Backrest		With Backrest	Without Backrest	With Backrest	Without Backrest	With Backrest	Without Backrest
Wide view 2-stage mast	M200	1615	3180	2720	1615	3180	2720	-	-	-	-	6/12
	M250	1865	3680	3220	1865	3680	3220	-	-	-	-	6/12
	M300	2115	4180	3720	2115	4180	3720	-	-	-	-	6/12
	M330	2265	4480	4020	2265	4480	4020	-	-	-	-	6/12
	M350	2365	4880	4220	2365	4880	4220	-	-	-	-	6/12
	M370	2465	5180	4420	2465	5180	4420	-	-	-	-	6/12
	M400	2665	5680	4720	2665	5680	4720	-	-	-	-	6/12
	M450	2915	6180	5220	2915	6180	5220	-	-	-	-	6/6
	M500	3165	6680	5720	3165	6680	5720	-	-	-	-	6/6
	M550	3465	7180	6220	3465	7180	6220	-	-	-	-	3/6
	M600	3715	3180	6720	3715	3180	6720	-	-	-	-	3/6
Full free 2-stage mast	Z200	1615	3680	2720	1615	3680	2720	470	930	570	930	6/12
	Z250	1865	4180	3220	1865	4180	3220	720	1180	820	1180	6/12
	Z300	2115	4480	3720	2115	4480	3720	970	1430	1070	1430	6/12
	Z330	2265	4680	4020	2265	4680	4020	1120	1580	1220	1580	6/12
	Z350	2365	4880	4220	2365	4880	4220	1220	1680	1320	1680	6/12
	Z370	2465	5180	4420	2465	5180	4420	1320	1780	1420	1780	6/12
	Z400	2665	4875	4720	2665	4875	4720	1520	1980	1620	1980	6/12
Full free 3-stage mast	S370	1870	5175	4420	1870	5175	4420	730	1185	830	1185	6/6
	S400	1970	5525	4720	1970	5525	4720	830	1285	930	1285	6/6
	S435	2085	5675	5070	2085	5675	5070	945	1400	1045	1400	6/6
	S450	2135	5975	5240	2135	5975	5240	995	1450	1095	1450	6/6
	S480	2235	6175	5520	2235	6175	5520	1095	1550	1195	1550	6/6
	S500	2305	6175	5720	2305	6175	5720	1165	1620	1265	1620	6/6
	S550	2520	6675	6220	2520	6675	6220	1385	1840	1485	1840	3/6
	S600	2685	7175	6720	2685	7175	6720	1555	2010	1655	2010	3/6
