Product Details
CHOOSE THE RIGHT TRUCK, AT THE RIGHT PRICE, FOR THE RIGHT ADHIBITION
YCMG 3 ton LPG forklift trucks bring power, dependability, productive forces and a low cost of property to operations across industry.
With a conventional automotive layout, YCMG 3 ton LPG forklift trucks are easy to use, simple to service and come with a range of standard characteristics and added choices.
With lift heights up to 6000mm, lift capacities from 1,500kg up to 3,000kg, empty load travel speeds up to 20km/h and excellent mobility, control and visibility, YCMG 3 ton LPG forklift trucks adapt to the needs of various businesses such as constructors, retailers, manufacturers, logistics, warehousing and much more.
YCMG 3 ton LPG forklift trucks Emphasize:
Operators can finish the job easily and quickly by using the 3 ton LPG forklift
Fast lifting and lowering speeds
Small turning radius and small dimension help to raise efficiency when manoeuvring in warehouse channels.
Gasoline, LPG or dual fuel models are available
Optional blue spot light is an warning system for 3 ton LPG forklift trucks, which ensures greater safety in aisles and especially in confusing crossing areas. The safety light has four options for the customers according to the relevant usage conditions, blue spot, red spot, blue arrow, red arrow. The voltage is available in 9-80VDC and 9-110VDC.
A range of masts (duplex wide view mast, duplex full free lift mast and triplex full free lift mast) are available with tilt options offering good visibility of the load and forks.
Various forks and attachments are available, including integrated side shift carriages to make load handling easy and convenient
Easy to use and comfortable
The operator working space offers a pragmatic and pleasant working circumstance
Controls are easy to reach and simple to operate
Various seat options including adjustable full suspension seat,GRAMMER brand
Clear LCD display gives the driver information at a glance
Rear drive handle with horn makes reverse driving more comfortable and more safe
Half cabins or full cabins are available.
Strong and responsible
Sustained and fit for purpose, YCMG 3 ton LPG Forklift Trucks are built to last, for a long working life.
Proven, high quality and robust components (fully qualified through YCMG purchasing department and quality department) result in reliable operation and lower abrasion wear

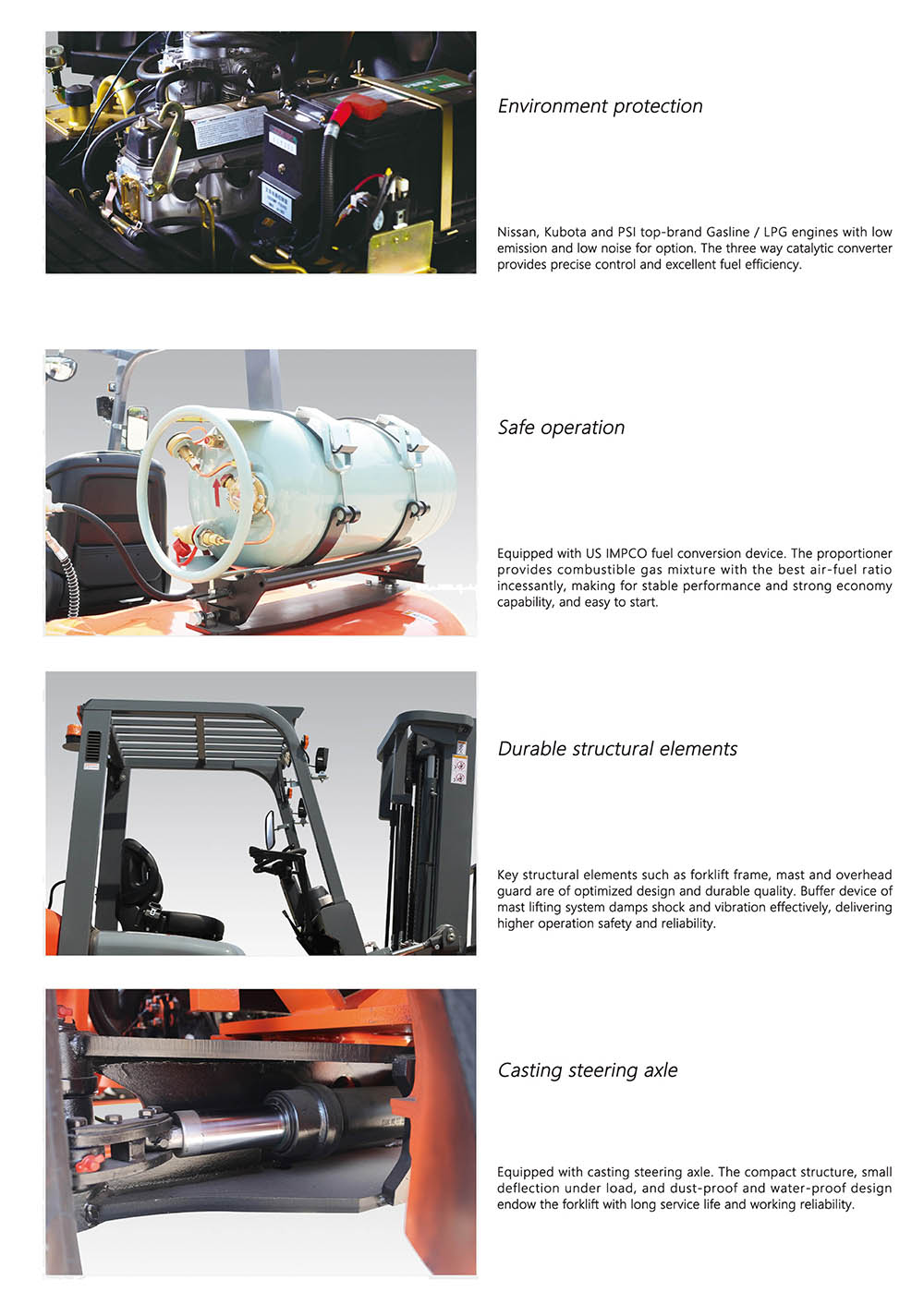

Proven industrial engines are used: LPG and dual fuel models feature the GCT K25
Transmission is well proven, reliable and efficient
Simple to maintain
Regular service items are easily accessible
Easily removable floor plate and quick release hood (opens 70 degrees)
Fast availability of cost-effective replacement parts
Backed up by a standard warranty

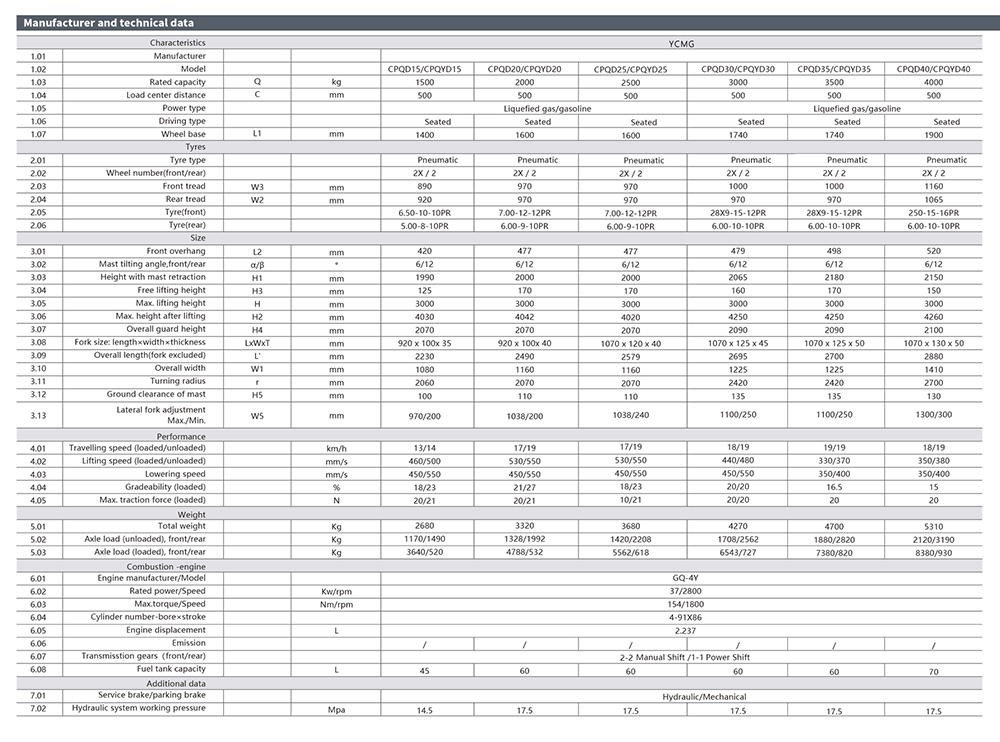

| Specification of 3Ton LPG & Gasoline Forklift | |||||
|---|---|---|---|---|---|
| Main Information | |||||
| 1 | Manufacturer | YICHA | |||
| 2 | Model | Unit | CPQD30 | CPQYD30 | |
| 3 | Power type | LPG | |||
| 4 | Rated capacity | kg | 3000 | ||
| 5 | Load center | mm | 500 | ||
| 6 | Operator type | Drive in seat | |||
| Size | |||||
| 7 | Max. lift height of mast without Load-backrest | mm | 5962 | ||
| 8 | Max.lift height of fork(standard) | mm | 4700 | ||
| 9 | Height of mast (standard) | mm | 2065 | ||
| 10 | Free lift height(standard) | mm | 160 | ||
| 11 | Height of Load-backrest | mm | 1240 | ||
| 12 | Distance from seat to overhead guard | mm | 1000 | ||
| 13 | overhead guard height | mm | 2165 | ||
| 14 | Length without fork | mm | 3752/2682 | ||
| 15 | Front overhang | mm | 479 | ||
| 16 | Rear overhang | mm | 495 | ||
| 17 | Wheel base | mm | 1700 | ||
| 18 | The height of traction pin | mm | 310 | ||
| 19 | Min. ground clearance | mm | 135 | ||
| 20 | Overall width | mm | 1225 | ||
| 21 | The distance between forks | mm | 1060/250 | ||
| 22 | Tread(front /rear) | mm | 1000/970 | ||
| 23 | Min. Turning radius(outside) | mm | 2400 | ||
| 24 | Min. Turning radius(inside) | mm | 200 | ||
| 25 | Min. Intersecting aisle | mm | 2380 | ||
| 26 | Mast tilt angle | deg | 6°/12° | ||
| 27 | Fork size | mm | 1070X125X45 | ||
| Performance | |||||
| 28 | Speeds | Max.Drive speeds(with/without load) | km/h | 18/19 | |
| 29 | Lifting speeds (with load) | mm/s | 440/480 | ||
| 30 | Lowering speeds(with /without full load) | mm/s | 450/500 | ||
| 31 | Max. tractive force | KN | 20/16 | ||
| 32 | Max.grade ability (with/without full load) | % | 20/20 | ||
| Weight | |||||
| 33 | Total weight | kg | 4580 | ||
| 34 | Weight Distribution full load (front/ rear) | kg | 6543/727 | ||
| 35 | Weight Distribution zero load(front / rear) | kg | 1708/2562 | ||
| Wheels and Tyres | |||||
| 36 | Quantity of wheels | 2x/2 | |||
| 37 | Type of tyres | Pneumatic | |||
| 38 | Tires | Front | 28X9-15-12PR | ||
| 39 | Rear | 6.50-10-10PR | |||
| 40 | Driving Brake | Hydraulic Pedal | |||
| 41 | Parking Brake | Mechanical manual | |||
| Control device for driving and transmitting | |||||
| 42 | Battery | V/AH | 12/80 | ||
| 43 | Engine (standard) | Model | Nissan K25 | ||
| 44 | Rated output | kw/rpm | 40/2800 | ||
| 45 | Rated torque | N.m/rpm | 154/1800 | ||
| 46 | No.of cylinder | 4-90X86 | |||
| 47 | Displacement | L | 2.351 | ||
| 48 | Fuel tank capacity | L | 60 | ||
| 49 | Number of speeds for transmission | 2-2 Manual shift truck/ 1-1Power shift transmission |
|||
