Product Details

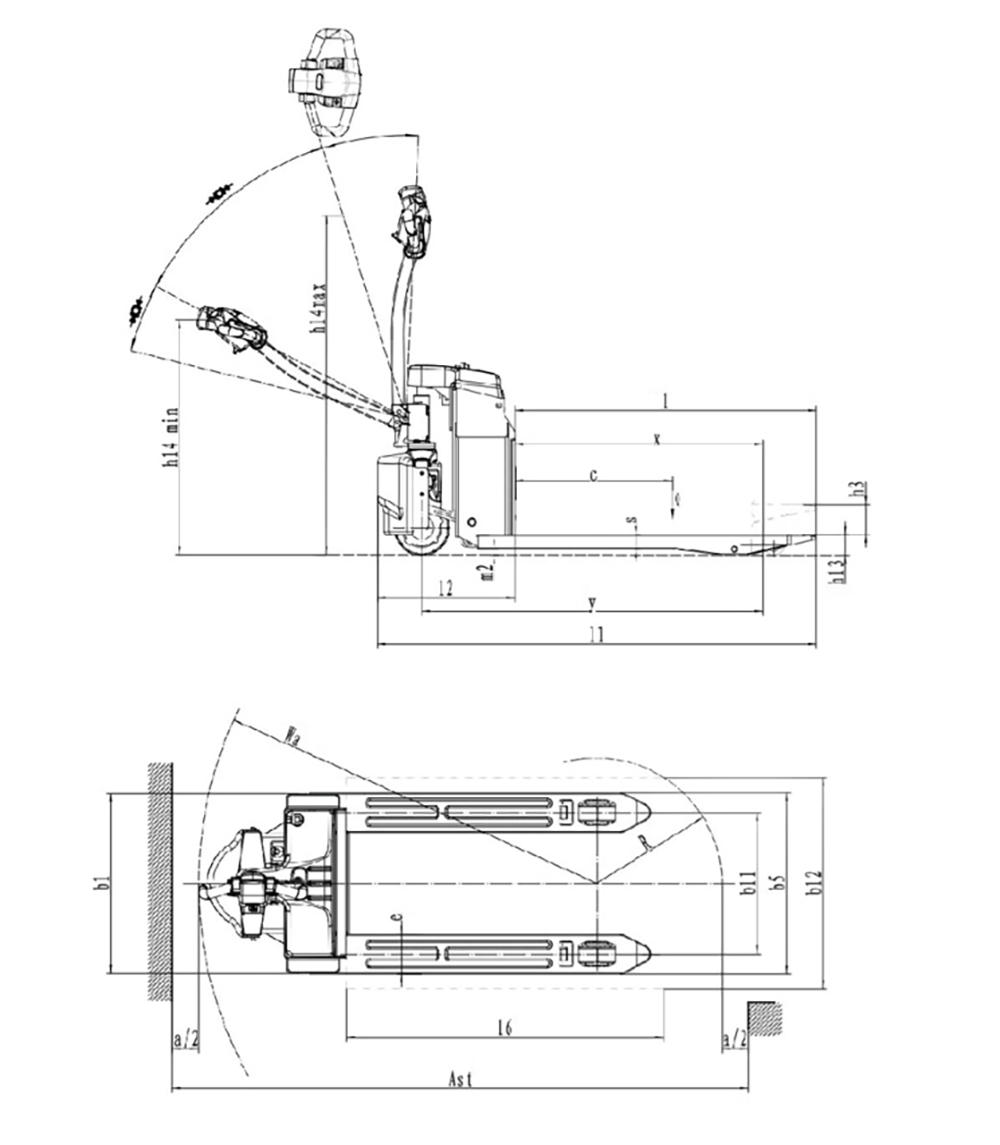

| Parameter | ||||
|---|---|---|---|---|
| Model | FEP20 | FEP30 | FEP40 | |
| Rated load capacity | Q(kg) | 2000 | 3000 | 4000 |
| Load center distance | C(mm) | 600 | 600 | 600 |
| Wheelbase | Y(mm) | 1450 | 1450 | 1495 |
| Self weight | kg | 715 | 735 | 780 |
| Wheel type | Polyurethane Wheel | |||
| Front wheel | ∅×w(mm) | φ80*80 | φ80*80 | φ80*80 |
| Rear wheel | ∅×w(mm) | φ230*75 | φ230*75 | φ230*75 |
| Balance wheel | ∅×w(mm) | φ125*50 | φ125*50 | φ125*50 |
| Maximum lifting height | H(mm) | 205 | 205 | 210 |
| Fork outer width | S1(mm) | 685/540 | 685/540 | 685 |
| Length(pedals retracted/expanded) | L(mm) | 1920/2340 | 1920/2340 | 1967/2385 |
| Width | S(mm) | 780 | 780 | 780 |
| Fork size | s/e/l(mm) | 55/175/1200 | 55/175/1200 | 60/180/1200 |
| Stacking aisle width | Ast(mm) | 2495 | 2495 | 2540 |
| Carrying distance | X(mm) | 1020 | 1020 | 1020 |
| Minimum turning radius(pedals retracted/expanded) | Wa(mm) | 1760 | 1760 | 1808 |
| Travel speed(no load/full load) | km/h | May 4 | May 4 | May 4 |
| Lifting speed(no load/full load) | m/s | 0.045/0.040 | 0.043/0.040 | 0.045/0.043 |
| Descent speed(no load/full load) | m/s | 0.035/0.043 | 0.035/0.445 | 0.035/0.048 |
| Maximum Climbing Capacity(no load/full load) | % | 8-Oct | 8-Oct | 8-Oct |
