Product Details
Lift height: 2000-6000 mm / Capacity: 2000 kg
The certified generalist for ultra out of door situations.
Sustained, saving and low maintenance.
Our rough and formidable 2 ton LPG forklift trucks are perfect for all heaping and conveying tasks out-of-doors, especially when fast reversing is required. They provide highest quality and maximum dependability – whatever the dare may be.
These widespread 2 ton LPG forklift trucks with torque converters offer continuously high production quantity at low consumption as well as high driving firmness thanks to tried-and-tested GCT industrial engines. Other advantages contain smooth starting, low oscillation driving and minimized noise development inside the cabin.
Thanks to the special counterweight design, the forklift truck’s low centre of gravity ensures high firmness and driving safety. The first-rank all-round visibility and a wide range of equipment options make for safe working conditions. All ergonomic solutions are operator-oriented and highly functional – the best basis for single-minded and competent operations in the warehouse.
All the advantages at a glance
• Optimal visibility thanks to mast design
• Powerful and competent GCT industrial motors
• Functional, safe and low-vibration work condition
Your YCMG forklift for maximum customer advantage.
Efficiency
Maximum performance with the most efficient vehicles.
High torque even at low speeds: Thanks to a strong and reliable engine, our forklifts run each circle with optimum consumption.
Powerful and efficient drive concept
• Proven industrial engines from GCT in Gasoline and LPG models, designed for lifespan, obdurability and dependability.
• High torque at low speeds.
• Engines with low emissions (North America Tier 4 Final).
• Low-consumption engines boost energy efficiency and slows down the ageing of the oil.
High-performance cooling system with combination cooler
• Heavy-duty combination cooler in aluminium plate-fin design for engine coolant, converter and transmission oil.
• Easy cleaning due to perpendicular arrangement of cooling parts for engine coolant, converter and transmission oil.
• Completely closed system –therefore no coolant vaporization.
• Reliable operation without a reduction in performance even at extreme surrounding temperatures.
Safety
Best prepared for safe warehouse operations
Innovative counterbalance weight design, first-rank all-round visibility and integrated safety equipment make our forklifts excellent assistants .
Reinforced safety
• Overhead guard height suitable for containers.
• Counterweight design with low centre of gravity for excellent stability.
• Water-proof electrics, plug and connections.
Lift mast with first rank of vision
• Optimal view of the load thanks to lift mast design giving good visibility, with optimal chain and hose.
Additional safety features
• Operator Presence Sensing system will automatically stop moving forward and reverse, loading and unloading after the operator leaves the truck three seconds.
Personality
A truck as unique as your business.
Designed for every adhibition: Our functional workplaces with operator-oriented ergonomic solutions are appropriate for every use.
Ergonomic operator working station
• Optimal visibility in all directions.
• Firm hydraulic levers positioned for easy use.
• Optimal allocation of display and switches for additional equipment (e.g. Optinal blue light and optional wipers) within the operator’s reach and field of vision.
• Numerous storage options, such as small tool box, documents clip.
• Automotive pedal allocation with non-slip surface.
Easy to maintain
• Optimal access to engine compartment due to 70°opening.
• Back floor plate easy to remove by hand.

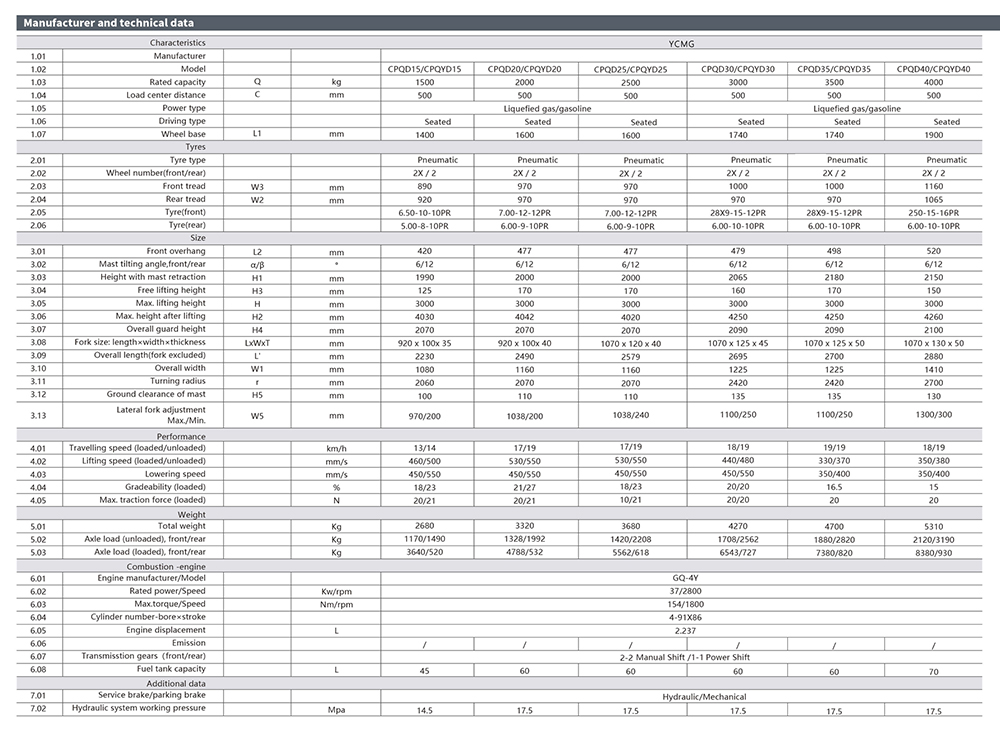

| Specification of 2 Ton LPG & Gasoline Forklift Forklift | |||||
|---|---|---|---|---|---|
| Main Information | |||||
| 1 | Manufacturer | YICHA | |||
| 2 | Model | Unit | CPQD20 | CPQYD20 | |
| 3 | Power type | LPG&Gasoline | |||
| 4 | Rated capacity | kg | 2000 | ||
| 5 | Load center | mm | 500 | ||
| 6 | Operator type | Drive in seat | |||
| Size | |||||
| 7 | Max. lift height of mast without Load-backrest | mm | 4030 | ||
| 8 | Max.lift height of fork(standard) | mm | 3000 | ||
| 9 | Height of mast (standard) | mm | 2000 | ||
| 10 | Free lift height(standard) | mm | 170 | ||
| 11 | Height of Load-backrest | mm | 1010 | ||
| 12 | Distance from seat to overhead guard | mm | 1000 | ||
| 13 | overhead guard height | mm | 2070 | ||
| 14 | Length without fork | mm | 3572/2502 | ||
| 15 | Front overhang | mm | 477 | ||
| 16 | Rear overhang | mm | 420 | ||
| 17 | Wheel base | mm | 1600 | ||
| 18 | The height of traction pin | mm | 290 | ||
| 19 | Min. ground clearance | mm | 110 | ||
| 20 | Overall width | mm | 1170 | ||
| 21 | The distance between forks | mm | 1024/200 | ||
| 22 | Tread(front /rear) | mm | 970/970 | ||
| 23 | Min. Turning radius(outside) | mm | 2170 | ||
| 24 | Min. Turning radius(inside) | mm | 160 | ||
| 25 | Min. Intersecting aisle | mm | 2200 | ||
| 26 | Mast tilt angle | deg | 6° / 12° | ||
| 27 | Fork size | mm | 1070x100x40 | ||
| Performance | |||||
| 28 | Speeds | Max.Drive speeds(with/without load) | km/h | 17/19 | |
| 29 | Lifting speeds (with load) | mm/s | 530/550 | ||
| 30 | Lowering speeds(with /without full load) | mm/s | 450/550 | ||
| 31 | Max. tractive force | KN | 20/15 | 21/15 | |
| 32 | Max.grade ability (with/without full load) | % | 21/20 | 27/20 | |
| Weight | |||||
| 33 | Total weight | kg | 3320 | ||
| 34 | Weight Distribution full load (front/ rear) | kg | 4788/532 | ||
| 35 | Weight Distribution zero load(front / rear) | kg | 1328/1922 | ||
| Wheels and Tyres | |||||
| 36 | Quantity of wheels | 2 X / 2 | |||
| 37 | Type of tyres | Pneumatic tires | |||
| 38 | Tires | Front | 7.00-12-12PR | ||
| 39 | Rear | 6.00-9-10PR | |||
| 40 | Driving Brake | Hydraulic pedal | |||
| 41 | Parking Brake | Mechanical manual | |||
| Control device for driving and transmitting | |||||
| 42 | Battery | V/AH | 12/80 | ||
| 43 | Engine (standard) | Model | GQ-4Y | ||
| 44 | Rated output | kw/rpm | 47/2800 | ||
| 45 | Rated torque | N.m/rpm | 154/1800 | ||
| 46 | No.of cylinder | 4-90X86 | |||
| 47 | Displacement | L | 2.237 | ||
| 48 | Fuel tank capacity | L | 60 | ||
| 49 | Number of speeds for transmission | 2-2 Hand shift transmission / 1-1 Power shift transmission |
|||
