Product Details

Forklift Specifications
Model			CDD10E	Code	Unit
Features		1.1	Type of Power			Battery
		1.2	Max. Load	Q	kg	1000
		1.3	Load Center	C	mm	400
		1.4	Wheelbase	L0	mm	914
		1.5	Wheel Distance: FR	W1	mm	405/525
		1.6	Wheel Distance: RR	W2	mm	752/820
		1.7	Type of Operation			Walk
Size		2.1	Front Wheel		mm	Φ80×70
		2.2	Universal Wheel		mm	Φ75×45
		2.3	Middle Wheel		mm	Φ45×30
		2.4	Driving wheel		mm	Φ185×70
		2.5	Middle Wheel Position	L4	mm	160
		2.6	Length of Outriggers	L3	mm	760
		2.7	Max. Fork Height	H	mm	800/900/1000/1100/1200/1300/1500/1600
		2.8	External Distance Between Forks	W3	mm	565/685
		2.9	Length of Fork	L2	mm	1195
		2.10	Thickness of Fork	B1	mm	60
		2.11	Width of Fork	B2	mm	190

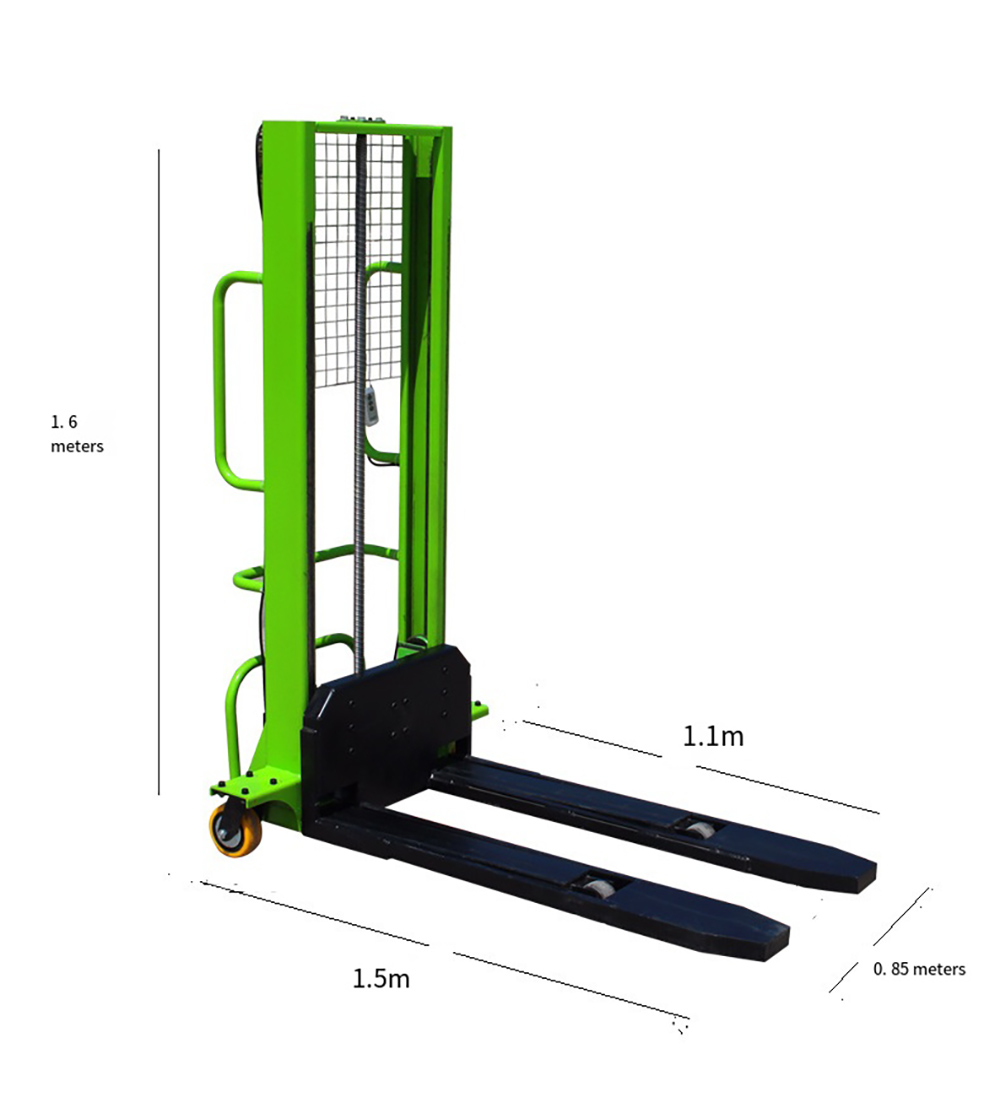

		2.12	Overall Length	L1	mm	1602
		2.13	Overall Width	W	mm	802/870
		2.14	Overall Height (Mast Closed)	H1	mm	1166/1266/1366/1466/1566/1666/1866/1966
		2.15	Overall Height (Max. Fork Height)	H1	mm	1850/2050/2250/2450/2650/2850/3250/3450
Performance and Configuration		3.1	Lifting speed		mm/s	55
		3.2	Descent speed		mm/s	100
		3.3	Lift Motor Power		kw	1.6
		3.4	Driving Motor Power		kw	0.6
		3.5	Max. speed(Turtle speed / full-load)		km/h	1/3.5
		3.6	Grade Ability(Full-load/NO-load)		%	5/10
		3.7	Battery Voltage		V	48
		3.8	Battery Capacity		Ah	15
Weight		4.1	Battery Weight		kg	5
		4.2	Total Weight（Include Battery）		kg	316/320/324/328/332/342/347
