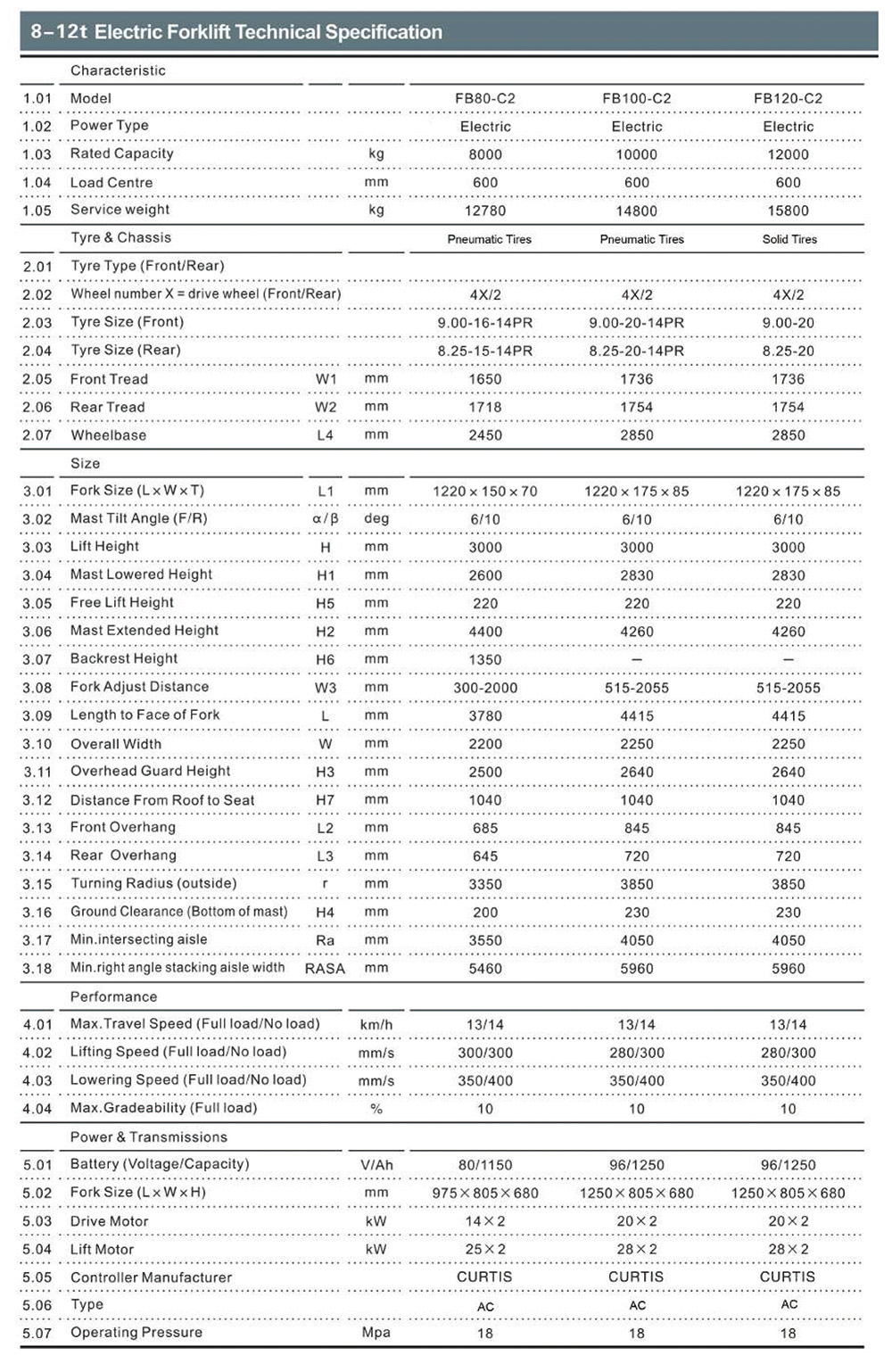

4-WHEEL ELECTRIC FORKLIFT8.0-12.0TON
General	1	Model			FB80	FB100	FB120
	2	Power Type			Electric	Electric	Electric
	3	Rated Capacity		kg	8000	10000	12000
	4	Load Centre		mm	500	500	500
Characteristic&Dimension	5	Lift Height		mm	3000	3000	3000
	6	Fork Size	LxWxT	mm	1220x150x70	1520x175x85	1520x180x100
	7	Mast Tilt Angle	F/R	Deg	6°/10°	6°/10°	6°/10°
	8	Front Overhang (Wheel center to fork face)		mm	650	750	750
	9	Tread	F/R	mm	1650/1700	1650/1700	1650/1700
	10	Ground Clearance (Bottom of mast）		mm	160	210	210
	11	Fork Spread	Min./Max.	mm	300/2000	515/2055	515/2055
	12	Overall Dimension	Length to face of fork(Without fork)	mm	3680	4480	4480
	13		Overall Width	mm	2200	2270	2270
	14		Mast lowered Height	mm	2600	2810	2810
	15		Mast Extended Height(With backrest)	mm	4550	4550	4550
	16		Overhead Guard Height	mm	2500	2650	2650
Performance	17	Turning Radius（outside）		mm	3350	3850	3850
	18	Min. inserting aisle		mm	3040	3200	3200
	19	Speed	Travel (Empty load)	km/h	15	15	15
Chassis	20		Lifting(Full load)	mm/s	275	260	220
	21	Max.Gradeability		%	15	10	10
	22	Tire	Front		9.00-16	9.00-20	9.00-20
	23		Rear		8.25-15	8.25-20	8.25-20
Power& Transmission	24	Wheelbase		mm	2450	2850	2850
	25	Service weight		kg	12780	16710	16910
	26	Motor	Drive Motor	kw	2x14(BEST MOTOR)	2x20(SCHABMULLER)	2x20(SCHABMULLER)
	27		Lift Motor	kw	2x25(SCHABMULLER)	2x28(SCHABMULLER)	2x28(SCHABMULLER)
	28	Battery	Voltage/Capacity	V/Ah	80/1150	96/1250	96/1250

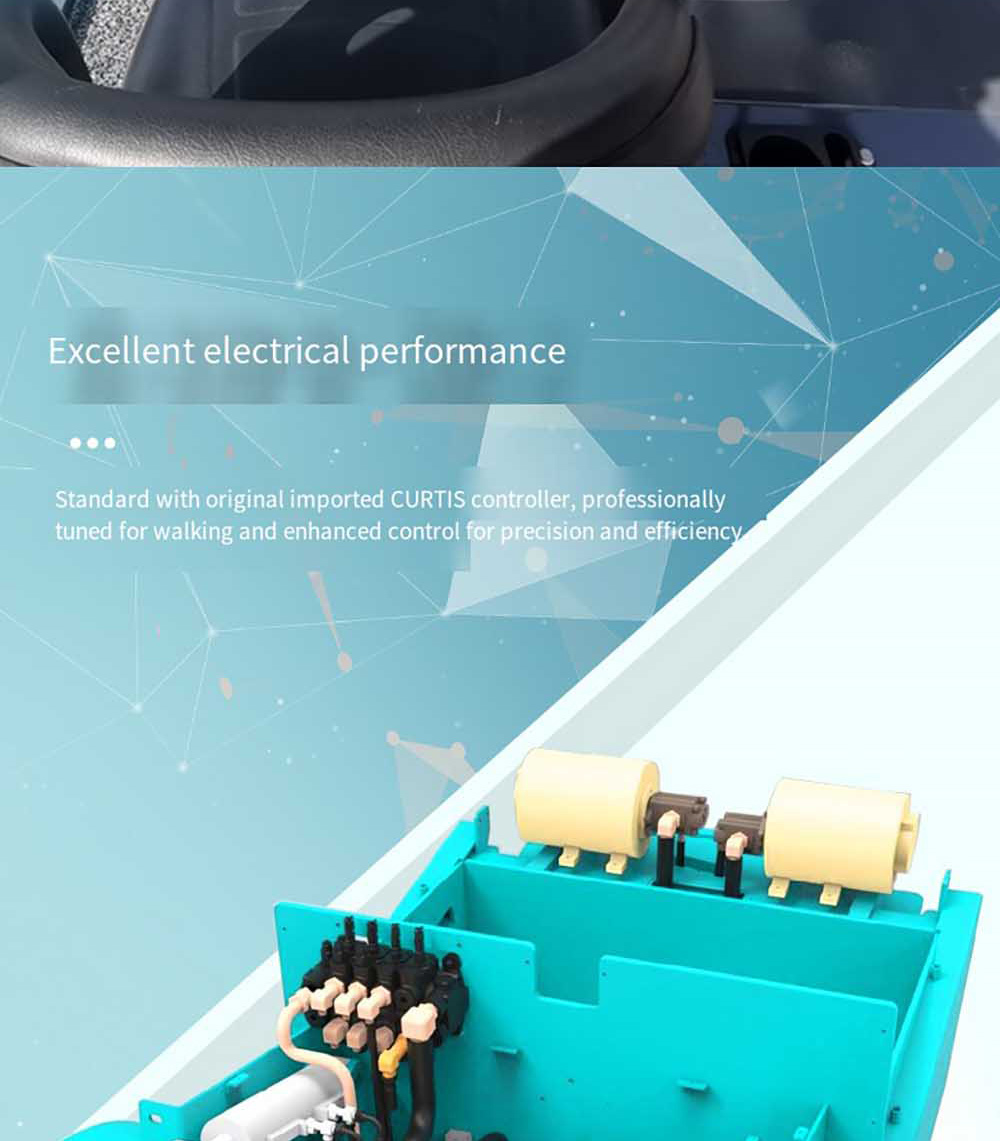

	29	Controller	Manufacturer		CURTIS	CURTIS	CURTIS
	30		Type		AC	AC	AC
	31	Operating Pressure for Attachment		Mpa	17.5	17.5	17.5
