Product Details
270°discharges
This Mixer replace generators, loaders,mixers
and even more than six staffs, it is a new generation leading
products of Industry construction.
The drum can be rotated at 270 degrees with no dead angles.
Features
1. Leading design, automatic feeding mixing system.
2. Easy to operate.
3.Efficient output, saving time,effort and cost.
4. Mixing tanker and loader, the transport truck is a
perfect combination into the whole.
5. Rotated at 270 degrees mixing and discharge.

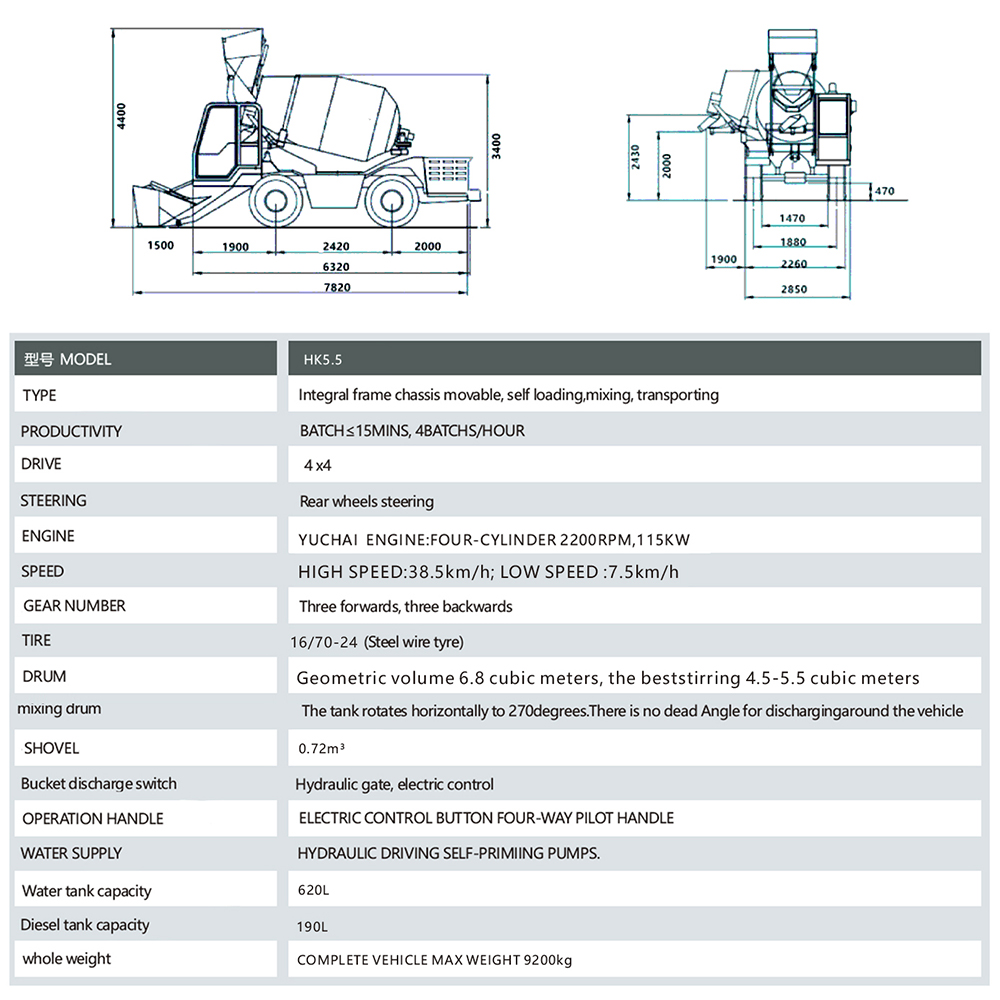

| Parameter | |
|---|---|
| Model | HK5.5 |
| Type | Integral Frame Chassis Movable, Self Loading,Mixing, Transporting |
| Productivity | Batch≤15mins,4batchs/Hour |
| Drive | 4x4 |
| Steering | Rear Wheels Steering |
| Engine | YUCHAI Engine:Four-Cylinder 2200rpm,115kw |
| Speed | High Speed:38.5km/H; Low Speed:7.5km/H |
| Gear Number | Three Forwards, Three Backwards |
| Tire | 16/70-24 (Steel Wire Tyre) |
| Drum | Geometric Volume 6.8 Cubic Meters, The Best stirring 4.5-5.5 Cubic Meters |
| Mixing Drum | The Tank Rotates Horizontally To 270degrees.There Is No Dead Angle For Discharging around The Vehicle |
| Shovel | 0.72m |
| Bucket Discharge Switch | Hydraulic Gate,Electric Control |
| Operation Handle | Electric Control Button Four-Way Pilot Handle |
| Water Supply | Hydraulic Driving Self-Priming Pumps. |
| Water Tank Capacity | 620L |
| Diesel Tank Capacity | 190L |
| Whole Weight | Complete Vehicle Max Weight 9200kg |
