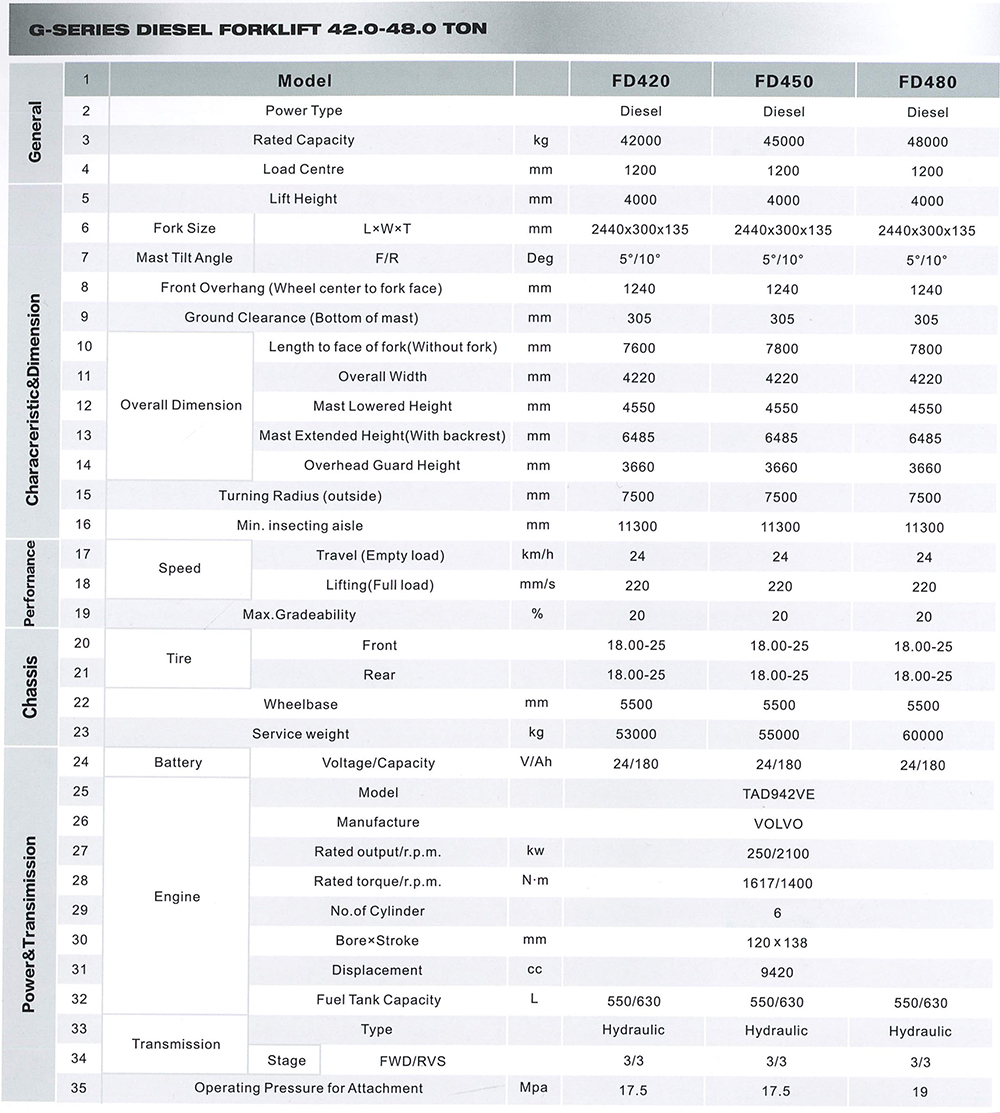

| G-SERIES DIESEL FORKLIFT 25.0-33.0 TON | ||||||||
|---|---|---|---|---|---|---|---|---|
| General | 1 | Model | FD420 | FD450 | FD480 | |||
| 2 | Power Type | Diesel | Diesel | Diesel | ||||
| 3 | Rated Capacity | kg | 42000 | 45000 | 48000 | |||

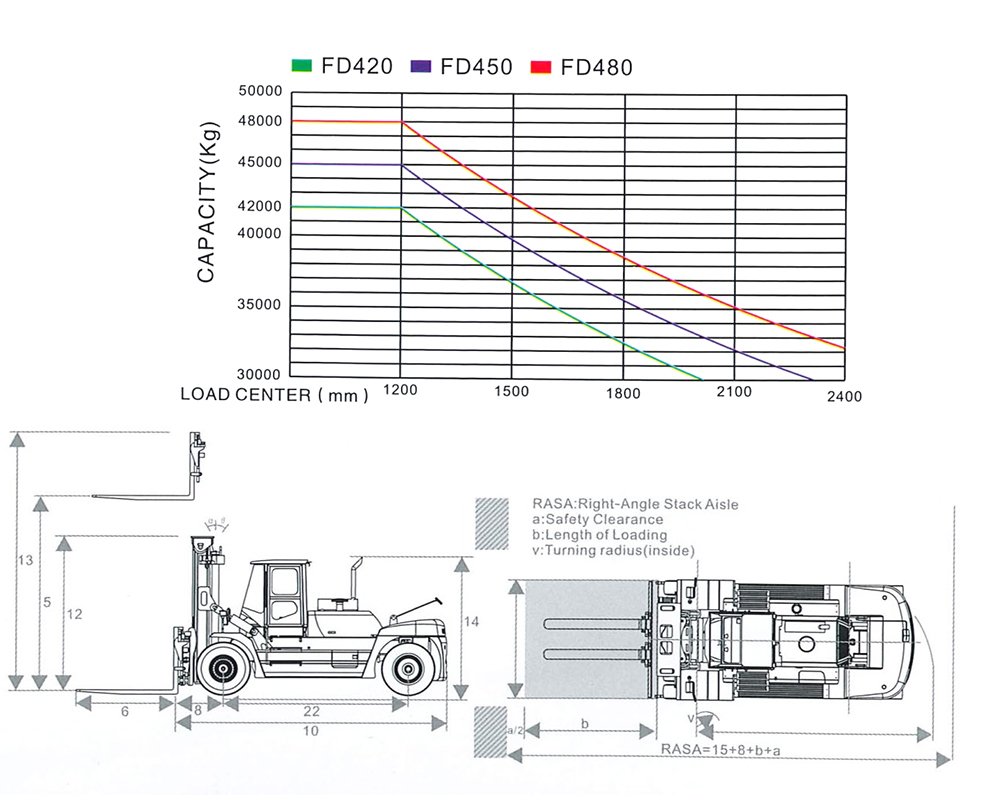

| 4 | Load Centre | mm | 1200 | 1200 | 1200 | |||
| Characteristic&Dimension | 5 | Lift Height | mm | 4000 | 4000 | 4000 | ||
| 6 | Fork Size | L×W×T | mm | 2440×300x135 | 2440×300x135 | 2440×300x135 | ||
| 7 | Mast Tilt Angle | F/R | Deg | 5°/10° | 5°/10° | 5°/10° | ||
| 8 | Front Overhang(Wheel center to fork face) | mm | 1240 | 1240 | 1240 | |||
| 9 | Ground Clearance(Bottom of mast) | mm | 305 | 305 | 305 | |||
| 10 | Overall Dimension | Length to face of fork(Without fork) | mm | 7600 | 7800 | 7800 | ||
| 11 | Overall Width | mm | 4220 | 4220 | 4220 | |||
| 12 | Mast Lowered Height | mm | 4550 | 4550 | 4550 | |||
| 13 | Mast Extended Height(With backrest) | mm | 6485 | 6485 | 6485 | |||
| 14 | Overhead Guard Height | mm | 3660 | 3660 | 3660 | |||
| 15 | Turning Radius(outside) | mm | 7500 | 7500 | 7500 | |||
| 16 | Min.inserting aisle | mm | 11300 | 11300 | 11300 | |||
| Performance | 17 | Speed | Travel (Empty load) | km/h | 24 | 24 | 24 | |
| 18 | Lifting(Full load) | mm/s | 220 | 220 | 220 | |||
| 19 | Max.Gradeability | % | 20 | 20 | 20 | |||
| Chassis | 20 | Tire | Front | 18:00-25 | 18:00-25 | 18:00-25 | ||
| 21 | Rear | 18:00-25 | 18:00-25 | 18:00-25 | ||||
| 22 | Wheelbase | mm | 5500 | 5500 | 5500 | |||
| 23 | Service weight | kg | 53000 | 53000 | 53000 | |||
| Power&Transmission | 24 | Battery | Voltage/Capacity | V/Ah | 24/180 | 24/180 | 24/180 | |
| 25 | Engine | Model | TAD942VE | |||||
| 26 | Manufacturer | VOLVO | ||||||
| 27 | Rated output/r.p.m. | kw | 250/2100 | |||||
| 28 | Rated torque/r.p.m. | N ·m | 1617/1400 | |||||
| 29 | No.of Cylinder | 6 | ||||||
| 30 | Bore×Stroke | mm | 120×138 | |||||
| 31 | Displacement | cc | 9420 | |||||
| 32 | Fuel Tank Capacity | L | 550/630 | 550/630 | 550/630 | |||
| 33 | Transmission | Type | Hydraulic | Hydraulic | Hydraulic | |||
| 34 | Stage | FWD/RVS | 3/3 | 3/3 | 3/3 | |||
| 35 | Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | 19 | |||
